Product Description

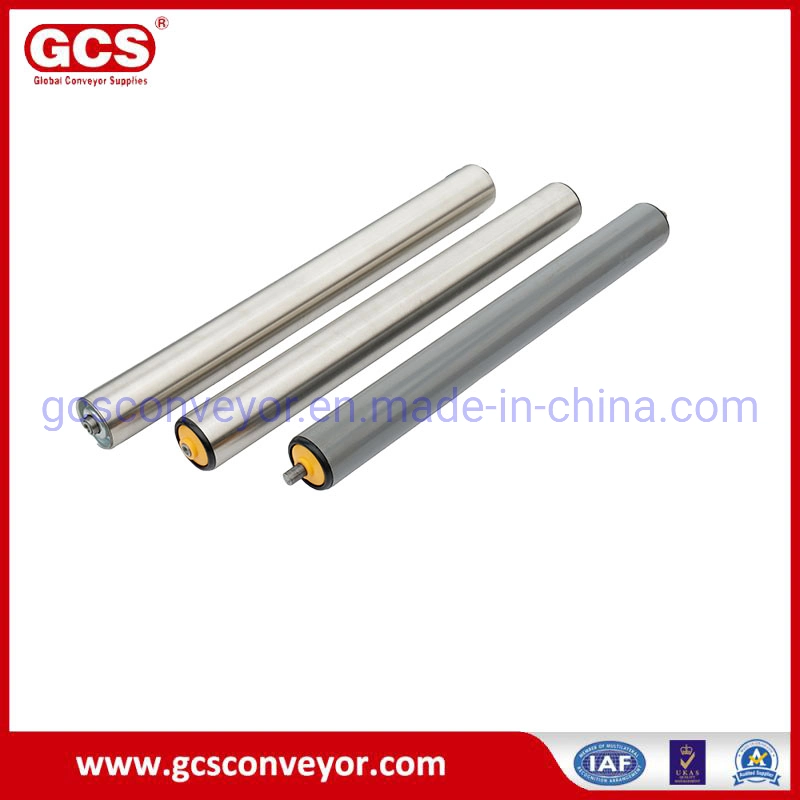

Spring Loaded Light Duty Steel Gravity Roller
Gravity Roller (Light Duty Roller) is widely used in all kinds of industry, like manufacturing line, assembly line, packaging line, conveyor machine and logistic strore.
PH: Precision Bearing (spring loaded)
| Model | Tube Diameter D (mm) | Tube Thickness T (mm) | Roller Length RL (mm) | Shaft Diameter d (mm) | Tube Material | Surface |
| PH28 | φ 28 | T=2.75 | 100-2000 | φ 12 | Carbon Steel Staineless Steel Aluminium | Zincorplated Chromeorplated |
| PH38 | φ 38 | T=1.2, 1.5 | 100-2000 | φ 12, φ 15 | ||
| PH42 | φ 42 | T=2.0 | 100-2000 | φ 12 | ||
| PH48 | φ 48 | T=2.75 | 100-2000 | φ 12 | ||
| PH50 | φ 50 | T=1.2, 1.5 | 100-2000 | φ 12, φ 15 | ||
| PH57 | φ 57 | T= 1.2, 1.5, 2.0 | 100-2000 | φ 12, φ 15 | ||
| PH60 | φ 60 | T= 1.5, 2.0 | 100-2000 | φ 12, φ 15 | ||
| PH63.5 | φ 63.5 | T= 3.0 | 100-2000 | φ 15.8 | ||
| PH76 | φ 76 | T=1.5, 2.0, 3.0 | 100-2000 | φ 12, φ 15, φ 20 | ||
| PH89 | φ 89 | T=2.0, 3.0 | 100-2000 | φ 20 |

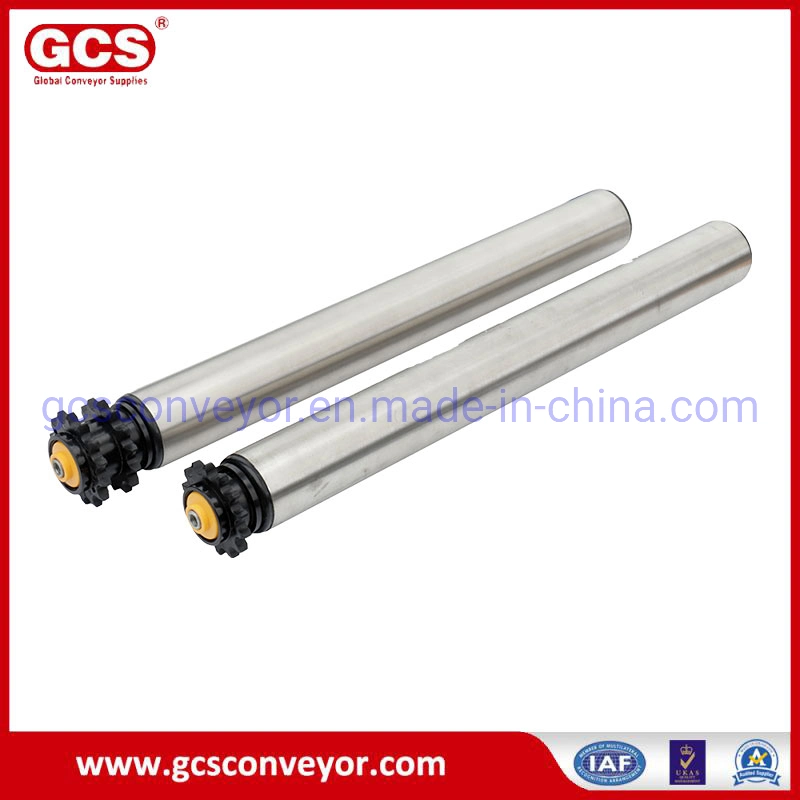

About roller,we can make gravity conveyor roller,steel conveyor roller,driving roller,light middle duty conveyor roller,o-belt tapered sleeve roller,gravity tapered roller,polymer sprocket roller and so on.More details,please contact us
